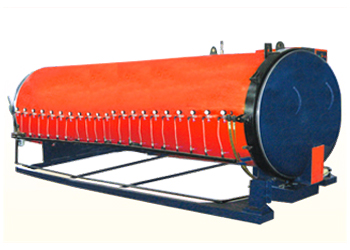

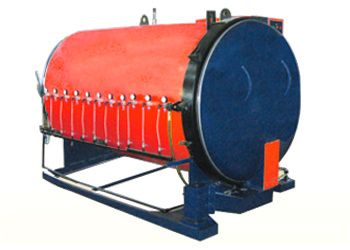

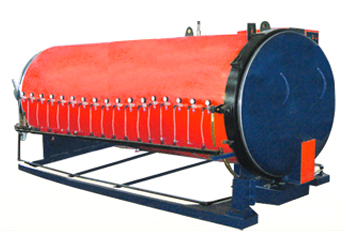

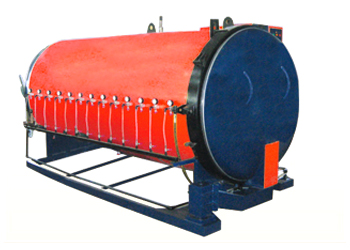

Electric Curing Chamber

Electric Curing Chambers - Model I ECC 3000 - 7 Tyres of Elecric Chambers

SPECIFICATIONS :

  • Dimensions : 950 X 2400 X 1800 MM
  • Electrical Load : 37 HP
  • Power Requirement : 415V / 50Hz 3 PHASE
  • Air Pressure Required : 8Kg/Cm2
  • Installation : Free Standing
  • Weight : APPROX 1500 Kgs
  • Tyre Sizes : 12" To 24"

Electric Curing Chambers - Model II ECC 5000 - 11 Tyres of Elecric Chambers

SPECIFICATIONS :

  • Dimensions : 950 X 2400 X 1800 MM
  • Electrical Load : 37 HP
  • Power Requirement : 415V / 50Hz 3 PHASE
  • Air Pressure Required : 8Kg/Cm2
  • Installation : Free Standing
  • Weight : APPROX 1500 Kgs
  • Tyre Sizes : 12" To 24"

Electric Curing Chambers - Model III ECC 8000 - 12 Tyres of Elecric Chambers

SPECIFICATIONS :

  • Dimensions : 950 X 2400 X 1800 MM
  • Electrical Load : 37 HP
  • Power Requirement : 415V / 50Hz 3 PHASE
  • Air Pressure Required : 8Kg/Cm2
  • Installation : Free Standing
  • Weight : APPROX 1500 Kgs
  • Tyre Sizes : 12" To 24"

Electric Curing Chambers - Model IV ECC 12000 - 16 Tyres of Elecric Chambers

SPECIFICATIONS :

  • Dimensions : 950 X 2400 X 1800 MM
  • Electrical Load : 63 HP
  • Power Requirement : 415V / 50Hz 3 PHASE
  • Air Pressure Required : 8Kg/Cm2
  • Installation : Free Standing
  • Weight : APPROX 1500 Kgs
  • Tyre Sizes : 12" To 24"

Electric Curing Chambers - Model V ECC 16000 - 22 Tyres of Elecric Chambers

SPECIFICATIONS :

  • Dimensions : 3800 X 2400 X 1800 MM
  • Electrical Load : 75 HP
  • Power Requirement : 415V / 50Hz 3 PHASE
  • Air Pressure Required : 8Kg/Cm2
  • Installation : Free Standing
  • Weight : APPROX 4000 Kgs
  • Tyre Sizes : 12" To 24"

Notes : Available Chambers 2 Tyres Electric Chambers to 22 Tyres Electric Chambers
